LED Driver

✨ MobiFlight LED Driver Board

Easily connect and control up to 32 LEDs in your home cockpit. Designed to work seamlessly with the MobiFlight Prototyping Board, it’s the perfect solution for annunciators, status indicators, or custom lighting projects. With onboard brightness controls, optional PWM inputs, and simple plug-and-play wiring, you’ll have full flexibility to create realistic and dynamic cockpit panels — no soldering required.

🔧 Features

• Up to 32 LEDs via JST XH connectors
• 4 daisy-chained 8-bit shift registers with LED drivers
• Group brightness control via four potentiometers
• Optional PWM dimming inputs per LED group
• External power (5V–12V) for higher loads
• Compact board for plug-and-play integration

🚀 Typical Use Cases

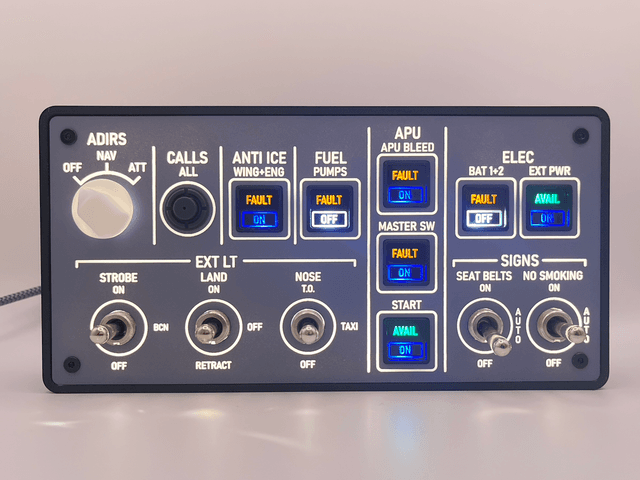

• Annunciator panels
• LED status lights
• Custom cockpit lighting

🔌 Compatibility

• Best with MobiFlight Prototyping Board (cables included)
• Direct connection to supported microcontrollers

📚 Resources

• Setup guide
• 3D printable case (STL)
